ParkBoard PQ – Smart Sideways Parking
ParkBoard PQ 1
ParkBoard PQ 2
ParkBoard PQ 3
ParkBoard PQ 4
Space for Vehicles
1
Ceiling height
250–400 cm
Needs Pit?
No
Dimensions
366 cm X 210 cm

Description

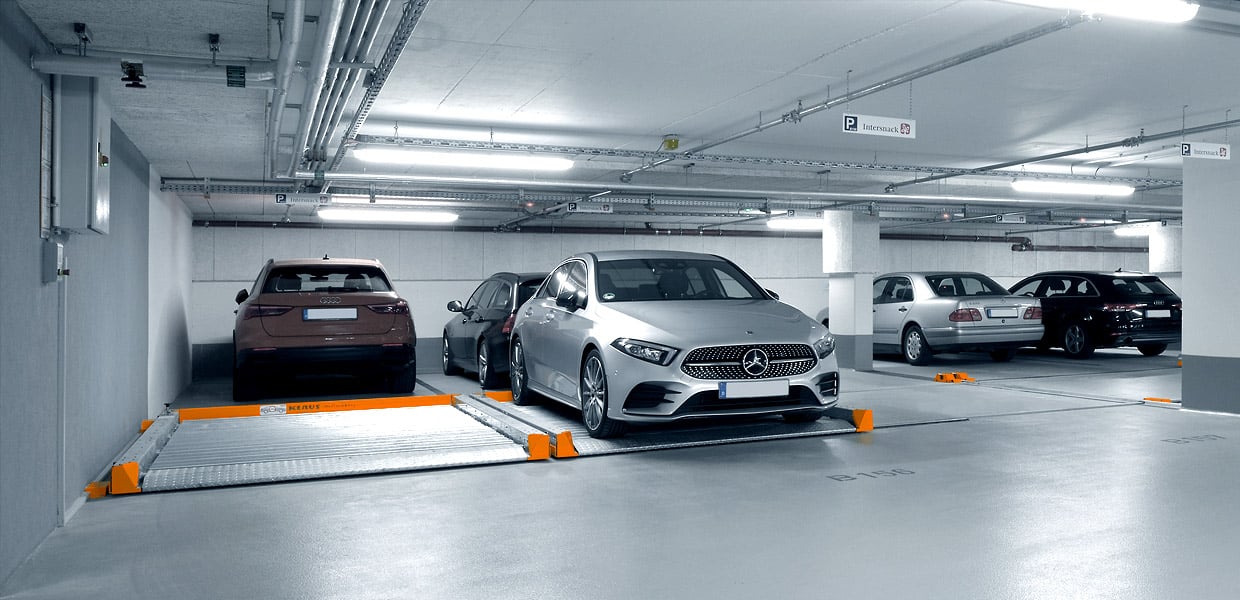

ParkBoard PQ pallets move individual cars transversely.

This pallet system moves the cars transversely. At the touch of a button, a powerful electric motor moves the parking pallets along rails, thus giving access to the desired parking space. This enables areas such as access lanes in a parking garage to be used as additional parking spaces in an intelligent way. The ParkBoard PQ parking pallet can be shifted transversely and is available for individual vehicles.

It can also be retrofitted in existing underground car parks or parking garages.

Features

  • Each pallet holds one vehicle
  • Pallets travel along rails
  • Vehicle dimensions: standard 206 cm, lengths max. 500 cm, heights 10 cm lower than the headroom
  • Standard design: 2,000 kg per parking space, optional max. 2,600 kg
  • Retrofitting possible, depending on local conditions
  • Platform coating: StandardGrip
  • Independent parking

Field of Application

  • In garages for family homes and apartment buildings
  • For more parking spaces in office buildings or residential and commercial buildings
  • To increase capacity in underground car parks or parking garages, e.g. of hotels or car dealerships

Specifications

Dimensions
366 cm X 210 cm
Needs Pit?
No
Ceiling Height Minimum
250 cm
Ceiling Height Maximum
400 cm
Space for Vehicles
1
Parking Type
Independent
Application Type
Indoor
Vehicle Type
SUV
ParkBoard PQ – Specifications
Pallet length366 cm
Vehicle lengthup to 500 cm
Overall length560 cm
PQ-210LP 182, width (B) 210, car width max. 180 cm
PQ-220LP 192, width (B) 220, car width max. 190 cm
PQ-236LP 208, width (B) 236, car width max. 206 cm
PQ-248LP 220, width (B) 248, car width max. 218 cm
PQ-258LP 230, width (B) 258, car width max. 228 cm
PQ-268LP 240, width (B) 268, car width max. 238 cm
PQ-278LP 250, width (B) 278, car width max. 248 cm
PQ-288LP 260, width (B) 288, car width max. 258 cm

Manufacturer

Company
Klaus Multiparking
Manufacturing Location
Germany, Aitrach
Certifications
TUV
Loading player...

Warranty

All our parking systems come with a 2-year warranty on the motor and electrical components, plus a 10-year warranty on the metal structure. For added peace of mind, this warranty can be extended to a lifetime when paired with our service contract.

Resources

To help you better understand and integrate our systems into your projects, we’ve compiled all the essential resources in one place. These documents provide detailed specifications, CAD models for planning, installation instructions, and certifications to ensure compliance with international standards.

Frequently asked questions

What warranty does the system have?
The motor and electrical components carry a 2-year warranty, the metal structure a 10-year warranty.
Is maintenance included in the warranty?
Yes. For the first 2 years the warranty includes cleaning and lubrication of the parts every 6 months.
How long do delivery and installation take?
It depends on when the order is placed. Delivery and installation together take 4 months at most.
